Electronic Boards
for Connectivity

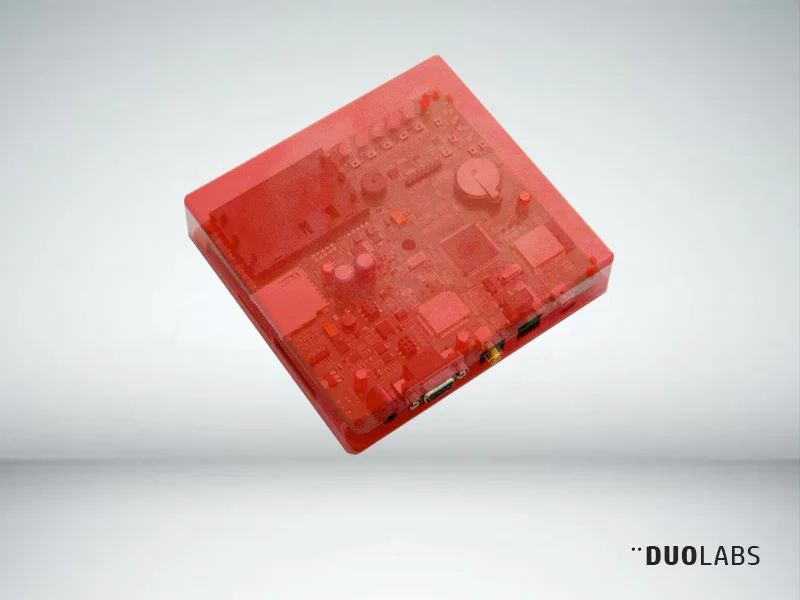

IoT Box is designed specifically to carry your devices’ data in the most demanding situations and conditions. Developed by Duolabs, this device includes several connectivity solutions and can be reduced in form factor and adapted to the client’s specific needs.

IoT Box is designed to connect directly to our Cloud IoT and can be adapted to connect to any third-party cloud.

We provide APIs for connecting to our Cloud IoT so it can be integrated into a proprietary cloud.

IoT Box is built to operate in a wide variety of scenarios and can be reconfigured in real time as needed. Its flexibility means there’s no need for physical intervention for updates or to change settings in the field. Everything can be managed remotely with ease.

Here are some of the key features:

• 32-bit ARM chipset.
• Wi-Fi + BLE module.
  Web server over Wi-Fi and BLE connection for smartphones.
• GSM/GPRS – 2G.
• GPS, GLONASS, Galileo, and QZSS module.
• TFT/LCD/OLED display.
• SD-Card support.
  For storing data when connectivity is not available.
• O.T.A. (Over-The-Air) updates.
• RS-485 connection.
• USB 2.0 connection.
• Acoustic buzzer.
• Backup battery for R.T.C. (Real Time Clock).

Certified, extremely compact and versatile, our RFID-NFC reader/writer supports NFC ISO/IEC 14443 (Type A and B), ISO/IEC 15693, ISO/IEC 18092 and MIFARE® Classic compatible 12, with tag read/write per NFC Forum Type 1, 2, 3 and 4 specifications.

The NFC firmware developed by Duolabs enables easy integration with external boards.

The module is designed for NFC (13.56 MHz) communication and features a microcontroller able to autonomously run a complete application, as we use for:

• Access control (door opening, etc.).
• Bike-sharing cart unlocking.
• Payment systems.
• Employee time clock (in/out).

This reader can be paired with a BLE + Wi-Fi module to communicate within a broader ecosystem.

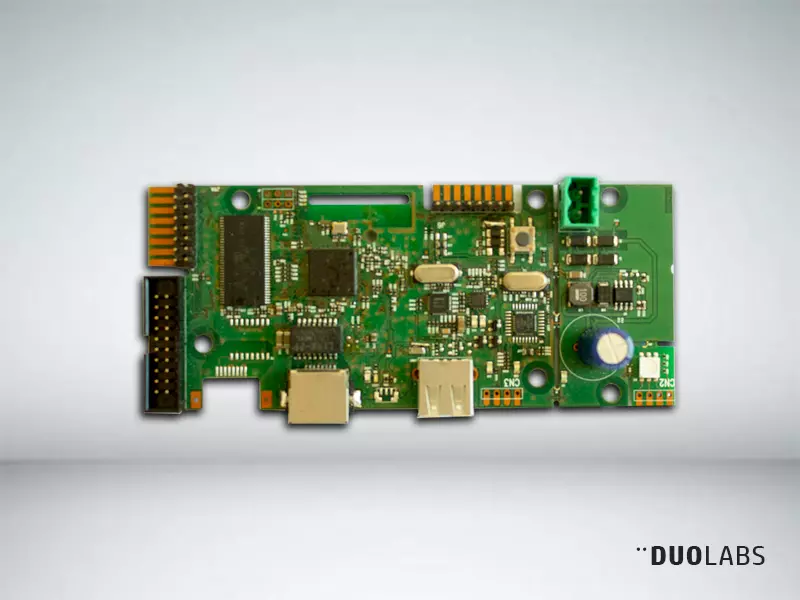

This Wi-Fi / Access Point module is part of a broader range of Wi-Fi modules made by Duolabs.

Its uniqueness lies in the complexity of a module with Embedded Linux and low-level interfacing via UART and other peripherals. More affordable and compact modules are also available which, for brevity, are not shown on this page.

We showcase this device to highlight the complexity of its design compared to standard “off-the-shelf” Wi-Fi + BLE modules.

Main features

• Qualcomm Atheros chipset (AR9331 family)
• Embedded Linux
• 2× UART
• 1× USB-to-Serial port
• Wi-Fi 802.11b / 802.11g / 802.11n – 150 Mbit/s (≈130 Mbit/s real)
• RF output power: 20 dBm (~100 mW)
• Flash memory 4 MB (expandable to 16 MB)
• RAM 32 MB (expandable to 64 MB)
• USB 2.0 port (High-Speed; for Full/Low-Speed devices use a suitable external USB hub)
• Power via Micro-USB connector

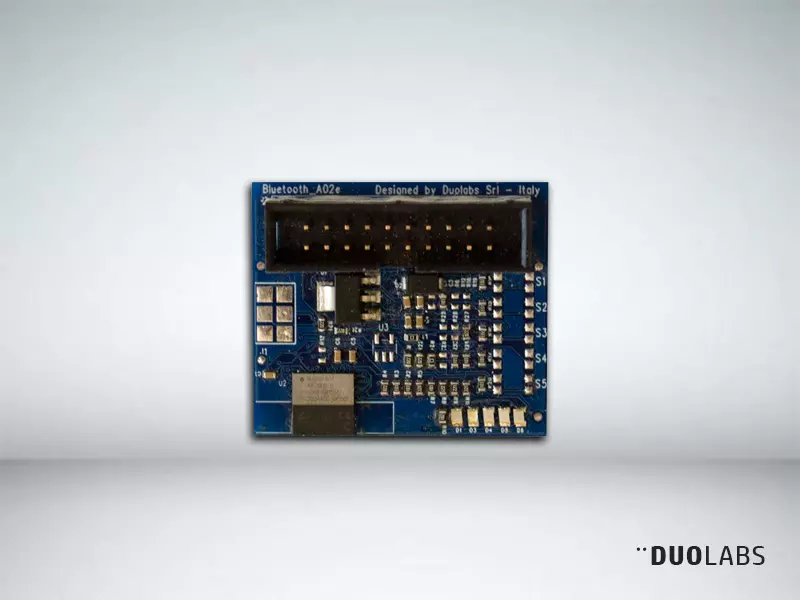

This Bluetooth Low Energy (BLE) module with Bluetooth 5.0 is designed to minimize cost and footprint while maintaining compatibility and ultra-low power, making it ideal for battery-powered devices. It operates in the 2.4 GHz ISM band and provides a solid foundation for IoT products requiring long battery life.

We present this device to highlight the greater design complexity and low-level control compared to typical “off-the-shelf” Wi-Fi + BLE modules. Our solution enables fine-tuned integration of GAP and GATT, with customizable stack and firmware.

Hardware integration is simplified thanks to standard interfaces for sensors and actuators: UART, SPI and I²C. Firmware Over-the-Air (OTA) updates are supported for fast, scalable maintenance.

Main features

• Compliant with BLE and Bluetooth 5.0 (improved speed, range, advertising).
• Ultra-low consumption for battery applications (deep sleep, optimized advertising).
• Supports GAP / GATT and, where required, Bluetooth Mesh.
• Integration interfaces: UART, SPI, I²C.
• Security based on AES-128 / CCM (pairing/bonding via BLE stack).
• OTA updates for field deployment and maintenance.
• Compact BLE SoC architecture to reduce BOM and design complexity.

Design advantages

• Optimized size and BOM for wearables, sensors, actuators, and remote controls.
• Customizable firmware for low-latency scenarios, advanced power management, and application protocols over GATT.
• Certification options for markets requiring CE and FCC Part 15 (upon project request).

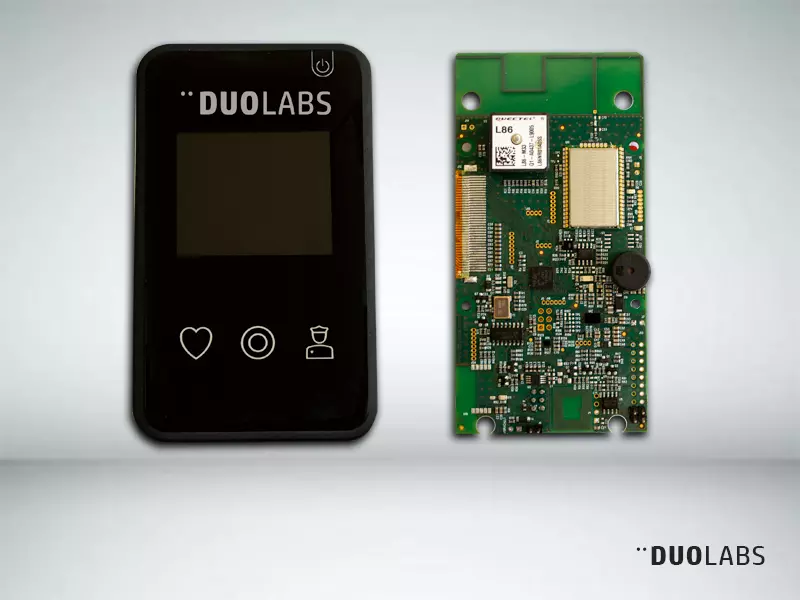

“A technology assembly for tracking movements”: this definition sums up a device capable of geolocating and communicating over distances of several kilometers. Based on LoRa, it sends and receives messages via the LoRaWAN protocol, optimized by Duolabs to maximize tower–device coverage.

The device is portable, battery-powered, and features a TFT display 2.4″ with three capacitive touch keys (capacitive sensing). It connects to a LoRa Gateway and, thanks to precise antenna calibration, can reach distances beyond 10 km even in urban contexts.

Designed for IP67 rating, it integrates short-range communication via RFID in tag mode (standard ISO/IEC 15693) and BLE. Charging is via the Qi standard.

System architecture
The solution includes:

• Portable Device (CPT)
• Application Server
• Network Server

Main features

• 32-bit ARM chipset
• 2.4″ TFT display
• 3 capacitive touch keys (capacitive sensing)
• Proprietary LoRa module
• Optimized LoRaWAN protocol; support for mesh-type topologies over LoRa modulation
• Proprietary BLE 4.2 module
• Multi-constellation GNSS receiver: GPS, GLONASS, Galileo and QZSS
• RFID functionality – ISO/IEC 15693 standard (tag mode)
• Qi wireless charging
• 3700 mAh battery
• Designed for IP67 protection

This device is equipped with a link to our Cloud IoT.

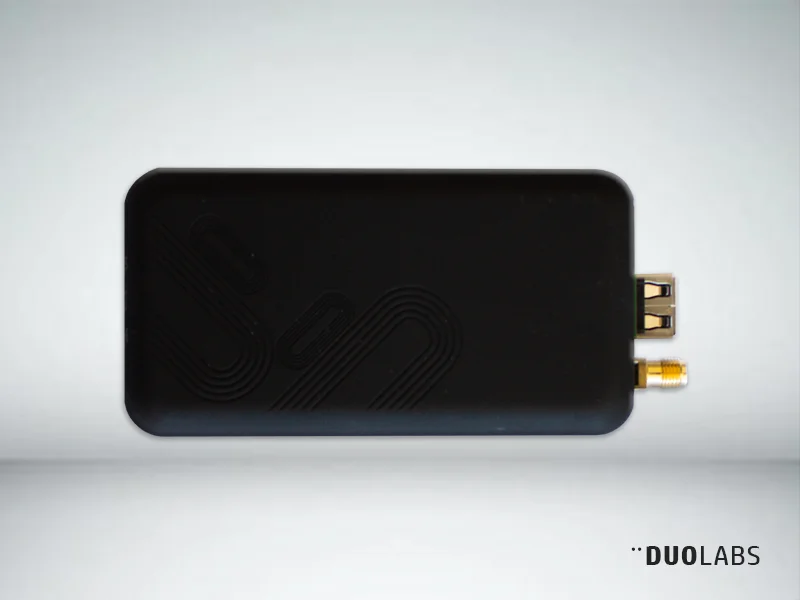

Compact module for remote control of devices via GSM, GPRS, and also available as 4G / LTE. Easy to integrate, it enables remote management and configuration via SMS and, where applicable, data exchange over cellular networks.

Electrical interfacing with the controlled device is via RS-232, making integration with existing systems and industrial equipment straightforward. The design targets maximum reliability for automation and distributed monitoring.

In particular, this module was developed for remote management of boilers and pellet burners (e.g., pellet boiler), enabling on/off control, status reading, and notifications/diagnostics via SMS.

Main features

• GSM / GPRS connectivity; also available in 4G / LTE versions for broader coverage and longevity.
• Control and configuration via SMS (commands and notifications).
• RS-232 serial interface to the unit under control.
• Ideal for telemetry and remote automation in industrial and domestic contexts.
• Engineered for quick integration into existing systems with minimal wiring.

Typical applications

• Remote management of boilers and pellet burners (pellet boiler).
• Remote control of electrical panels and actuators.
• Alarm, status, and diagnostic notifications via SMS.

This device is equipped with a link to our Cloud IoT.
